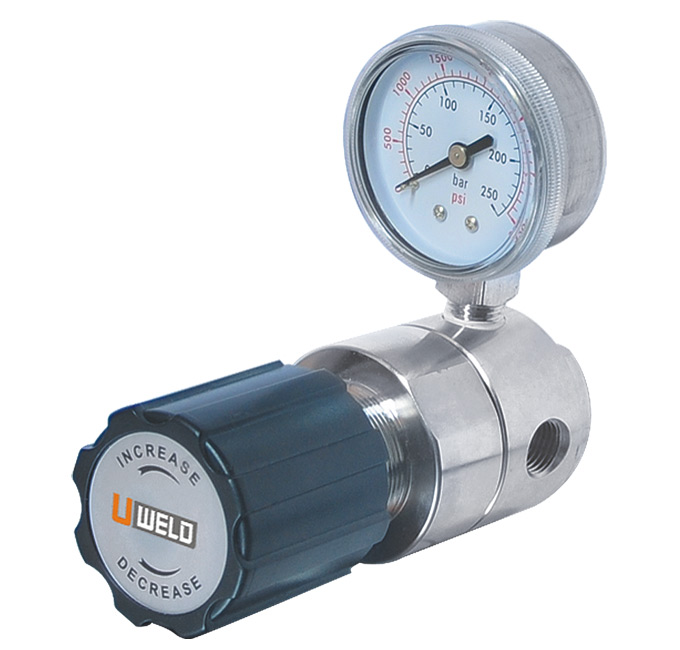

Single Stage Design.
Body Connection:1/4"NPT(F)
Fliter Inside.
Use hard seal between the diaphragm
and body
Body Material:316L.Brass
Workng Tempresure:(-40°F- +165°F)
| Item | Gas | GDR;K | . | Testing Pressure(psig) | Inlet Connection | Outlet Connection |
| Stainless Regulator |
|
500 | 0-25 | 37.5 | 1/4"NPT | 1/4"NPT |
| UW-12-1505 | Special | 3000 | 0-50 | 75 | CGA330 | 1/8"Frame |
| UW-12-1506 |
|
4000 | 0-100 | 150 | CGA350 | 1/4"Frame |
| UW-12-1507 |
|
|
0-250 | 375 | CGA580 | 3/8"Frame |
|
|
|
|
0-500 | 750 | G5/8" | 15:6mmFrame |
|
|
|
|
|
|
W21.8 | 16:8mmFrame |
